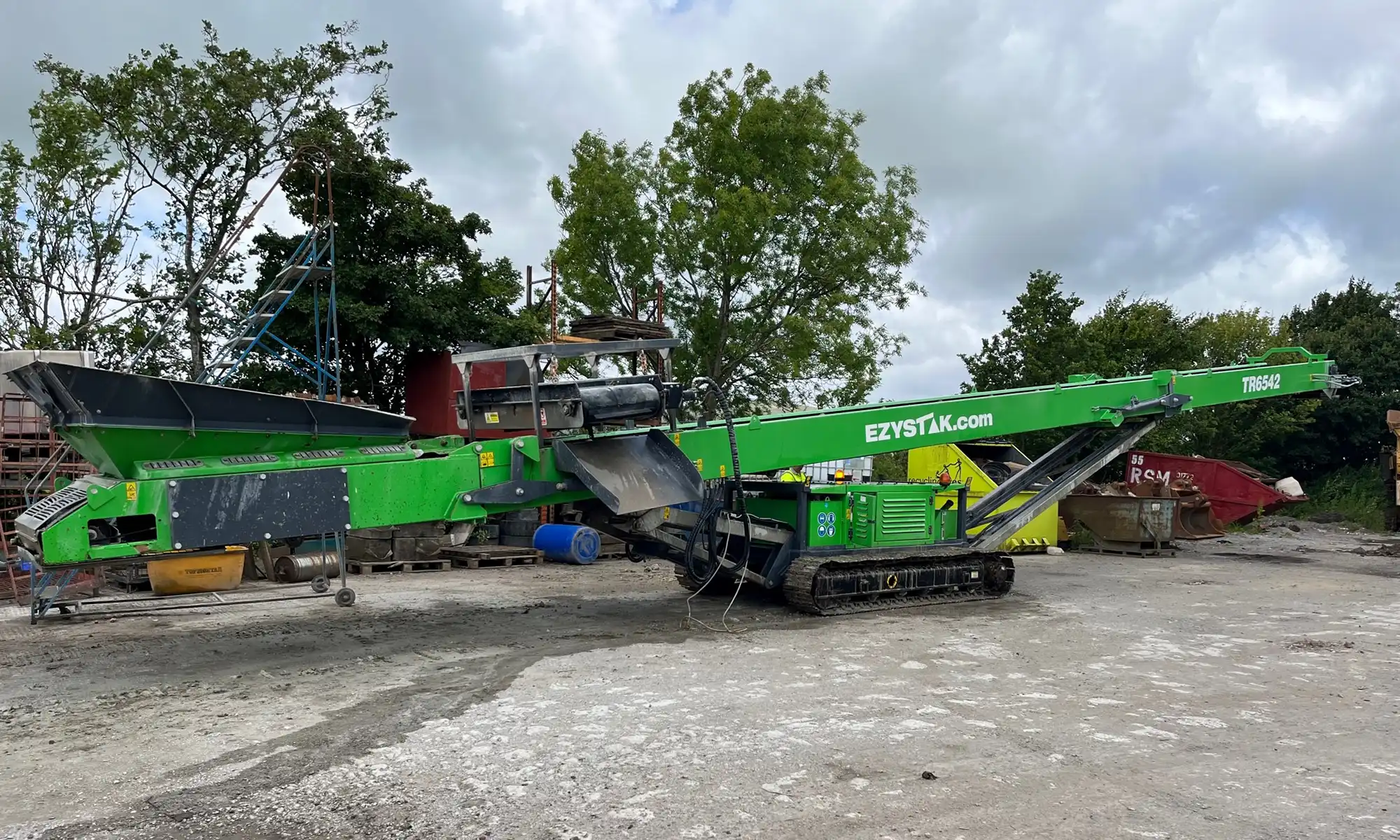

Ezystak TR6542 with or without magnet
Advantages
- Minimises transport costs with easy tracking in and out of 40ft container
- Can be used for various applications: Top Soil, Sand, Coal, Bark and Crushed Aggregate
- A wide range of heights for output and input and can be used with other crusher and screeners
- Height on front stanchions can be set with out using manual pins by special load holding cylinders
- Easy mobility on site
- Increased efficiency while operating, and increased stockpile capacity
- Reduced fuel costs ie: no need for shovel operator to move materials from under conveyor
Overall Dimensions
- Machine Width: 2260mm / 7.5 Ft
- Transport Length: 12515mm / 41 Ft
- Transport Height: 2.580 m / 8.5 Ft
Specification
- Discharge Height: 10.791m / 35.4 Ft
- Belt Width: 1050mm / 3.3 Ft
- Belt Length: 19.878mm / 65.2 Ft
- Belt Type: EP 500 3Ply / Optional
- Power Unit: Diesel Hydraulic with Cat 2.2c engine
- Developing: 38kw / 50bhp @ 2200 rpm
- Fuel Consumption: 5.2 - 6.2 ltr / hr
Screencore 380 with our without magnet
80' tracked, twin drive, front and rear lift.
The Screencore 380, is a heavy duty 24m tracked stacker with the 1000mm wide conveyor. Twin drive for huge production capacity. A compact unit for transport with hydraulic head and tail fold.
